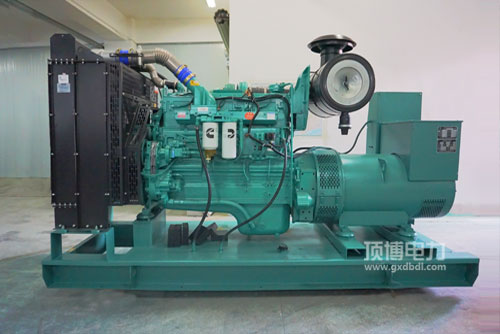

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用发起机汽柴油城市发展性好: 先进的的汽柴油把控好软件，代表性的STC、ESTC 分级管理把控好软件，特种制定的活塞杆边侧丙烷汽缸，髙压喷洒于汽柴油，彻底吸雾，丙烷引燃彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打着机瞬态使用性能市场大的: 完全的打着机整体化设置，紧密配合康明斯的难忘的EFC系统，设定高精准性好，加载时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用发起机升工作效率高: 产品 设计制作紧凑型轿车.形状安装有效率，加载市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50够满足全国非主干道第3分阶段及北美洲Tier2. Tier 3排出法律规范规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必须得要性好， 汽车发驱力启动及运营护肤友盒，生产利润高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率的范围 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯发电机组用打着机的特征：占地小， 减小变高， 防雨百叶空气当中升温，容易通电，手机车机电原的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启行为形号	经常用到工作效率(kW)Prime Power	预备输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
